Pulley Lifting Beam

Browse our downloadable content below.

Pulley Lifting Beam Factsheet IOM

Why choose a Pulley Lifting Beam from TS Global

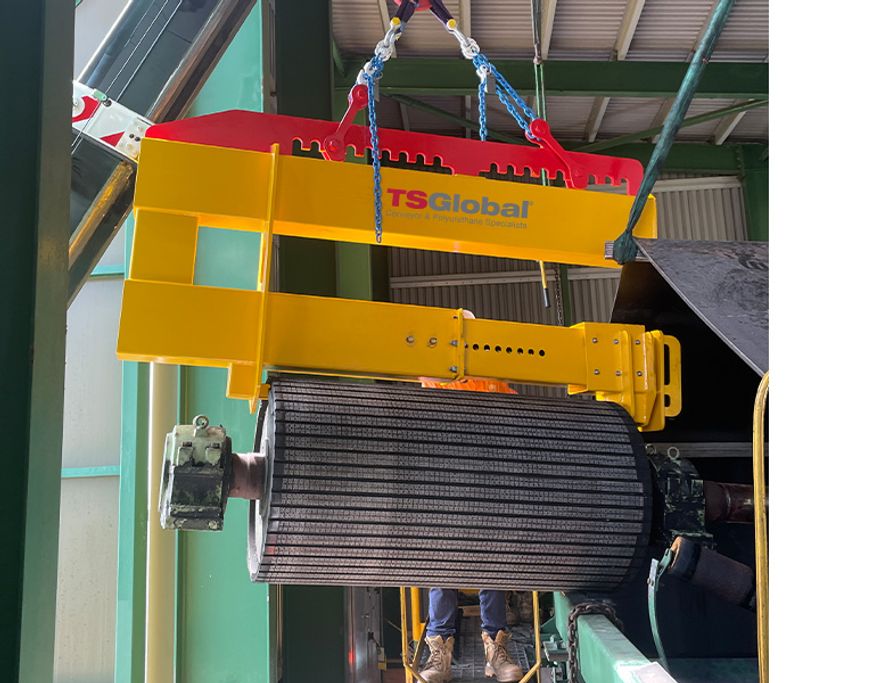

TS Global's Pulley Lifting Beam is designed to support safer and more efficient pulley handling during removal and installation activities. Engineered specifically for conveyor pulley change-outs, it reduces the need for improvised lifting arrangements and can facilitate pulley removal without cutting the conveyor belt, helping minimise shutdown duration and improve maintenance efficiency.

Available in 4.5 tonne, 7 tonne and 12 tonne variants, the Pulley Lifting Beam incorporates a multi-hole telescopic rail system that can be adjusted to suit pulley face widths from 882 mm to 2441 mm. This flexibility allows the lifting beam to be configured for a wide range of pulley sizes while providing improved control and balance during lifting operations.

Designed to simplify pulley handling in confined or difficult-to-access locations, the lifting beam enables safer and more controlled removal and installation of pulleys. By improving load balance and handling stability, it helps reduce manual handling risks and supports more efficient shutdown execution.

Used in conjunction with fit-for-purpose transport frames and handling equipment, the Pulley Lifting Beam forms part of TS Global's broader approach to delivering practical engineered solutions that improve maintainability, reduce downtime and support safer maintenance activities.

Balancing durability, functionality and ease of use, the TS Global Pulley Lifting Beam provides a cost-effective solution for pulley handling across a wide range of materials handling applications. All lifting beams are rated and certified in accordance with Australian Standards AS3990 and AS4991.



Pulley Lifting Beam Range

Size Typical Belt Width Face Width
Small: 4.5 Tonne  800mm – 1200mm 882mm-1482mm
Medium: 7 Tonne  1000mm – 1800mm  1150mm-1986mm
Large: 12 Tonne  1400mm – 2300mm 1541mm-2441mm

Customs sizes available on request.
